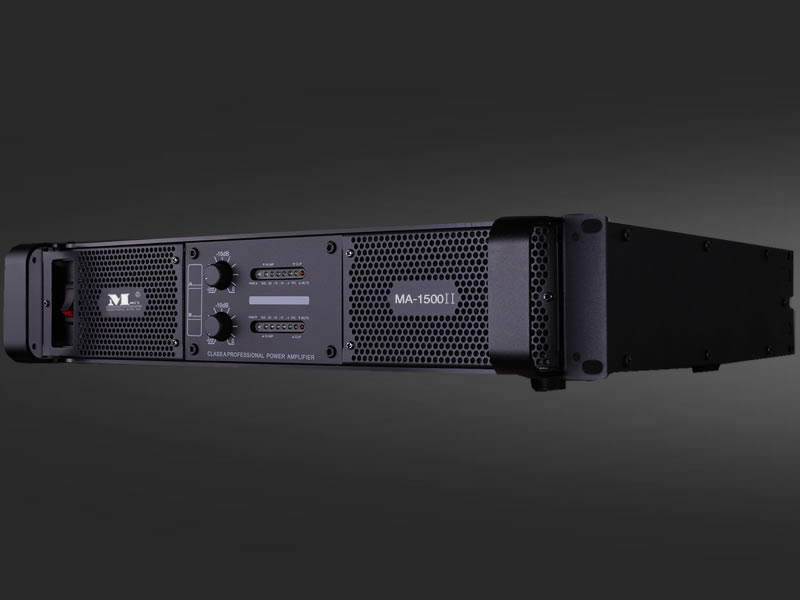

| MA Series Amplifier |
|
|
Product Description
MA Series breakthrough innovation portfolio
First ultra-high permeability, high flux density, small nano-core transformer.
Class A circuit design, perfect sound quality.
Full-band distortion-free digital limiter function, DC protection, automatic temperature control fan speed, slow boot no impact.
Product Features:
1. Good sound quality
2. Nano-core transformer
3.Class A Line
4. Multifunction protection circuit.
Application areas:
1. Live Sound System
2. Fixed installation
3. touring |
| Detailed Description |
|
Model
|
MA-600II
|
MA-800II
|
MA-1000II
|
MA-1200II
|
MA-1500II
|
MA-1800II
|
|
1KHz,0.01% THD+N
|
|
|
Output 8Ohms stereo Mode
|
600W*2
|
800W*2
|
1000W*2
|
1200W*2
|
1500W*2
|
1800W*2
|
|
Output 4Ohms stereo Mode
|
900W*2
|
1200W*2
|
1500W*2
|
1800W*2
|
2700W*2
|
3000W*2
|
|
Output 2Ohms stereo Mode
|
1200W*2
|
1600W*2
|
2000W*2
|
2400W*2
|
3600W*2
|
4000W*2
|
|
Output 8Ohms bridge Mode
|
1800W
|
2400W
|
3000W
|
3600W
|
5400W
|
6000W
|
|
Output 4Ohms bridge Mode
|
2400W
|
3200W
|
4000W
|
4800W
|
7200W
|
8000W
|
Signal / noise(A weighted)
|
-102dB
|
|
﹛Slew Rate
|
80v/us
|
80v/us
|
82v/us
|
85v/us
|
90v/us
|
98v/us
|
|
Frequency Response @1 Watt into 8 Ohm
|
0/-1dB,1W/8次 20Hz-20KHz
|
|
IMD
|
≒0.08% @ 8次 at rate output
|
|
THD+N
|
≒0.06% @ 8次1kHz
|
|
Damping factor
|
10-400Hz/8次 600:1
|
10-400Hz/8次 610:1
|
10-400Hz/8次 630:1
|
10-400Hz/8次 650:1
|
10-400Hz/8次 680:1
|
10-400Hz/8次 700:1
|
|
Input Sensitivity
|
8 ohm rated power automatic 0.77V
|
|
Input Impedance
|
20k Ohm Balanced or10k Ohm Unbalanced
|
|
Crosstalk at Rated Output 8 Ohms 1kHz
|
﹛≒-75dB﹛
|
|
Imput CMRR
|
﹛≒-70dB﹛
|
|
Digital pressure limiting control coefficien
|
0.77V-8.5V
|
|
Indicators
|
Actect,Protect,Signal,Clip
|
|
Working mode
|
High speed H
|
|

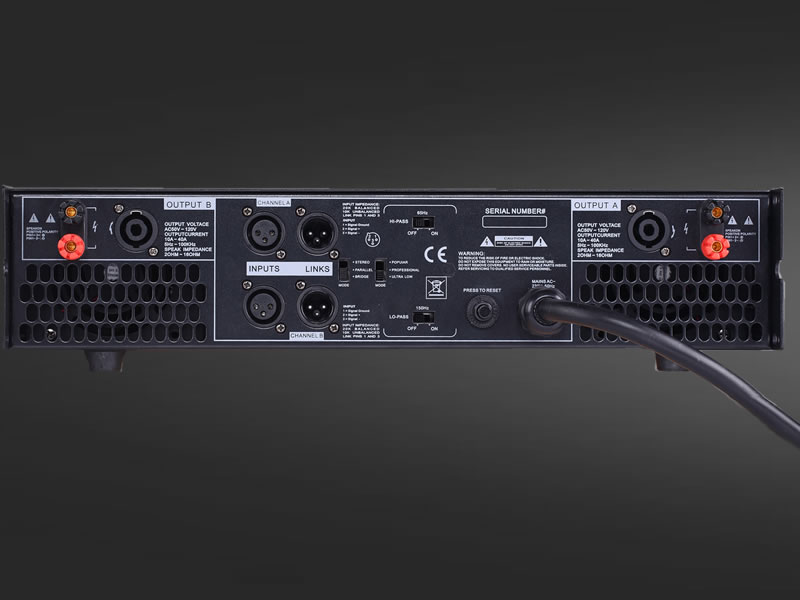

The input connection
|
Enter the XLR plug
|
|
The output connection
|
The output of Neutrik Ni4
|
|
Power Supply
|
‵220Vㄛ50Hz/60Hz
|
|
Structure
|
The combination of aluminum sheet and plate high reliability of CNC
|
|
Dimensions:(mm)
|
90H*483W*488D
|
|
Net Weight
|
22Kgs
|
24Kgs
|
26Kgs
|
28Kgs
|
31Kgs
|
33Kgs
|
|
Gross weight
|
24Kgs
|
26Kgs
|
28Kgs
|
30Kgs
|
33Kgs
|
35Kgs
|
|
﹛ |
|
