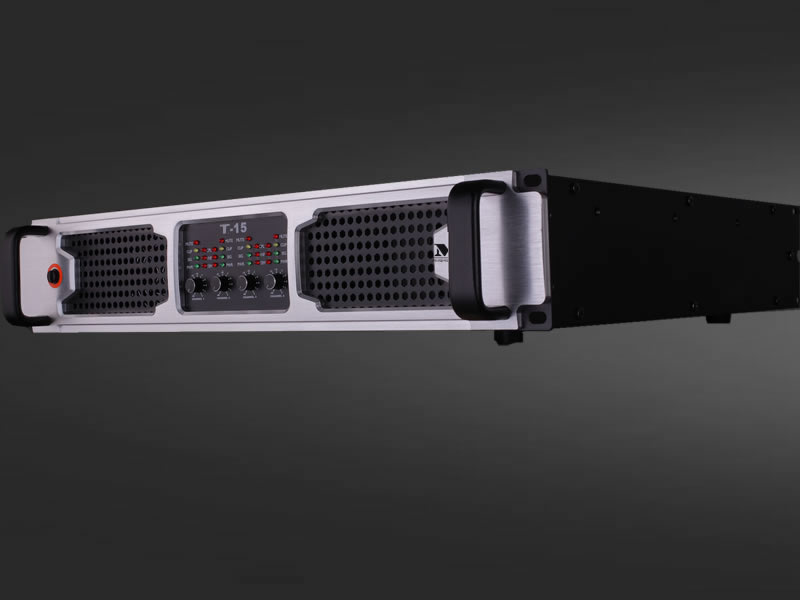

| T Series Amplifier |
|
|
Product Description
T series of high-end perfect choice
The new R & D, industry leading technology.
Advanced technology, to create high-end products.
Digital efficient power management technology.
A DC protection, automatic temperature control, power / frequency synchronization adjustment, never stop technology.
Product Features:
1. Good sound quality
2. The four independent channels
3. The number of analog integrated circuit TD class
4. Multifunction protection circuit.
Application areas:
1. Live Sound System
2. Fixed installation
3. touring |
| Detailed Description |
|
Model
|
T-13
|
T-15
|
|
1KHz,0.01% THD+N
|
|
|
Output 8Ohms stereo Mode
|
1300W*4
|
1500W*4
|
|
Output 4Ohms stereo Mode
|
2150W*4
|
2500W*4
|
|
Output 2Ohms stereo Mode
|
2600W*4
|
3000W*4
|
|
Output 8Ohms bridge Mode
|
4300W*2
|
5000W*2
|
|
Output 4Ohms bridge Mode
|
5200W*2
|
6000W*2
|
Signal / noise(A weighted)
|
-102dB
|
|
﹛Slew Rate
|
80v/us
|
90v/us
|
|
Frequency Response @1 Watt into 8 Ohm
|
0/-1dB,1W/8次 20Hz-20KHz
|
|
IMD
|
≒0.04% @ 8次 at rate output
|
|
THD+N
|
≒0.05% @ 8次1kHz
|
|
Damping factor
|
10-400Hz/8次 620:1
|
10-400Hz/8次 630:1
|
|
Input Sensitivity
|
Rated power of 8 Omega can choose 1V / 26dB /32dB
|
|
Input Impedance
|
≡20K/≡10K
|
|
Crosstalk at Rated Output 8 Ohms 1kHz
|
﹛≒-75dB﹛
|
|
Imput CMRR
|
﹛≒-70dB﹛
|
|
Digital pressure limiting control coefficient
|
1V-8.5V
|
|
Indicators
|
Actect,Protect,Signal,Clip
|
|
Working mode
|
Digital analog integrated circuit switching power supply automatic adaptation / vector
|
|

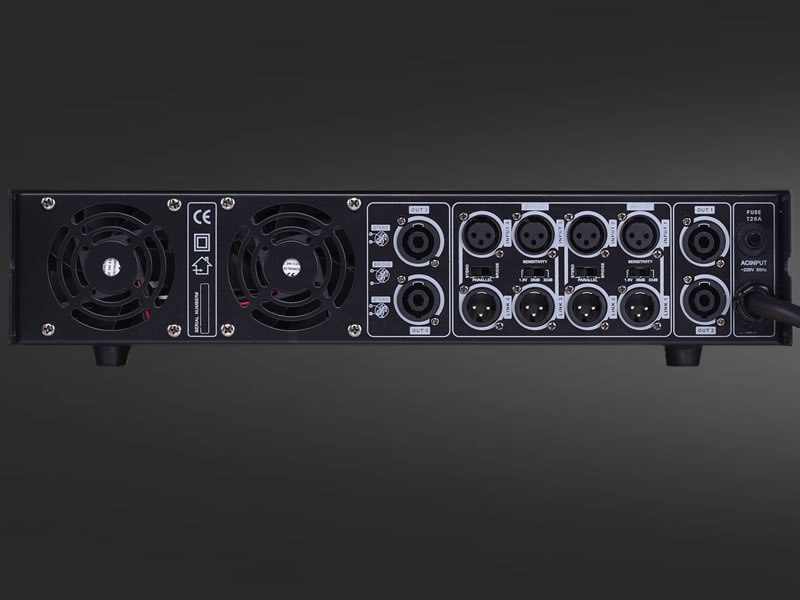

The input connection
|
Enter the XLR plug
|
|
The output connection
|
The output of Neutrik Ni4
|
|
Power Supply
|
‵220Vㄛ50Hz/60Hz
|
|
Structure
|
The combination of aluminum sheet and plate high reliability of CNC
|
|
Dimensions:(mm)
|
90*483*510
|
|
Net Weight
|
16.5Kgs
|
17Kgs
|
|
Gross weight
|
18.5Kgs
|
19Kgs
|
|
﹛ |
|
